圆弧瓦(经典型)彩石金属瓦

彩石金属瓦_圆弧瓦(经典型)

Classical tile


   圆弧瓦是一种经典的彩石金属瓦传统屋面瓦,有一种古朴的中国风,象征着圆润与富态的屋面瓦。


Classical tile is a classic stone coated metal roofing tile traditional roofing tile, a kind of ancient Chinese wind, symbolizing the roofing tile of rounded and plump.


彩石金属瓦的构成

1、镀铝锌层 2、耐指纹保护层 3、丙烯酸脂保护层 4、有机涂覆

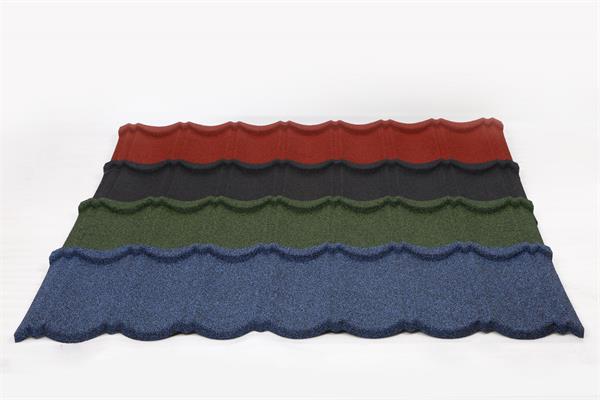

A colorful metal tile

1, galvanized layer 2, fingerprint resistant protective layer 3, acrylic protective layer 4, organic coating


彩石金属瓦的结构

镀铝锌钢板是由55%铝,43.4%锌和1.6%硅组成的电镀液经电镀而成的,其加工性、涂装性与镀锌钢板基本相同。

镀铝锌上面为耐指纹涂层,耐指纹涂层起到保护镀铝锌层的作用,同时耐指纹涂层能使镀铝锌钢板与彩色砂粒进行更好粘结,耐指纹涂层的颜色分为无色透明和淡绿色。

Color metal tile structure

Aluminium zinc plate is from 55% aluminum, 43.4% zinc and 1.6% silicon composition of plating solution by electroplating, the process, coating and galvanized steel is basically the same.

Galvanized fingerprint resistant coating, resistant to protecting the aluminized zinc layer fingerprint coating, resistant to fingerprint coating can make aluminium zinc plate and the colour sand are better adhesion, resistance to fingerprint coating color is colorless, transparent and pale green.


彩石金属瓦的工艺

彩色砂粒是圆孤瓦的装饰层及基层保护层,它是由一定粒径的玄武岩颗粒经高科技着色工艺和高温烧结而成的。具有十多种颜色,可耐紫外线照射,能降低雨水给金属瓦造成的噪音。

丙烯酸树脂为粘合钢板与彩砂的关键材料,同时也作为采砂表面的保护层,防止细部雨水渗漏,能延长砂粒色彩的寿命。


Color metal tile process

The colour sand is a circular arc tile decoration layer and the base layer of protection, it is made by a certain particle size of basalt particles by high-tech coloring process and high temperature sintering. With more than 10 kinds of colors, resistant to ultraviolet radiation, to reduce the noise of the rain caused by metal tile.


圆弧型金属彩石瓦易切割、易弯曲,每平方米仅需2片,使用安全,安装快捷,基本不需维护维修。

Classical metal color stone tile cutting easy, easy to bend, per square metre only 2, safe to use, quick installation, basically do not need to maintenance and repair.


品牌:博天彩石金属瓦型号:BT101-115类型:彩石金属瓦
表面状态:烧结彩砂产品等级:优等品(A)形状:经典型
特殊功能:防水、防火、防腐加工定制:是产地:安徽芜湖
密度:1.174g/cm3抗压强度:耐压MPa化学成分:镀铝锌钢板
导热系数:不详W/(m·K)用途:屋顶防水、防热、防腐外形尺寸:1340*420mm
重量:2700g规格:1340*420mm重量:2.7KG/片
覆盖面积:0.4736平方实际面积:0.5628平方



点击查看彩石金属瓦购买流程 | 彩石金属瓦安装流程 彩石金属瓦应用范围


如果需要【免费取样】请点击在线QQ:点击这里给我发消息 徐经理:150-6882-0108

If you need [free sampling] please click here to send a message to the QQ:237913647

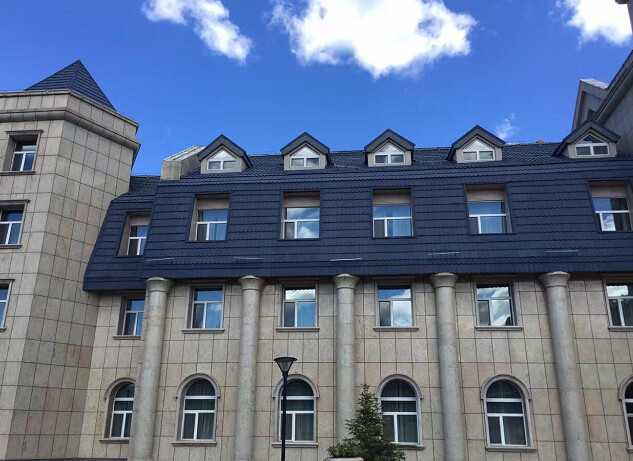

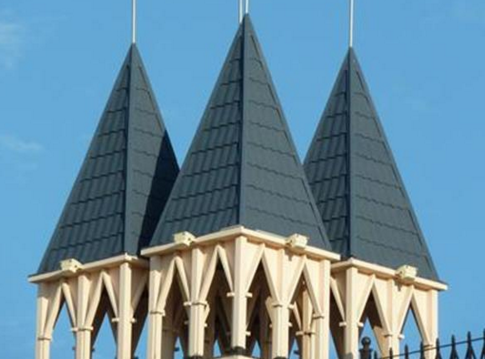

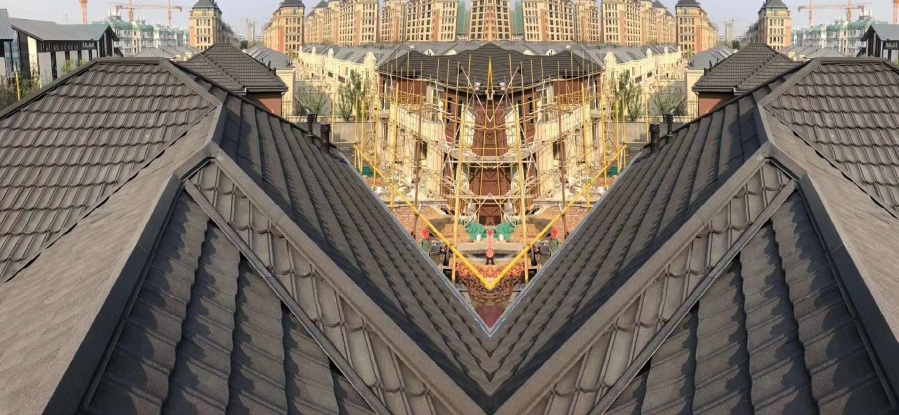

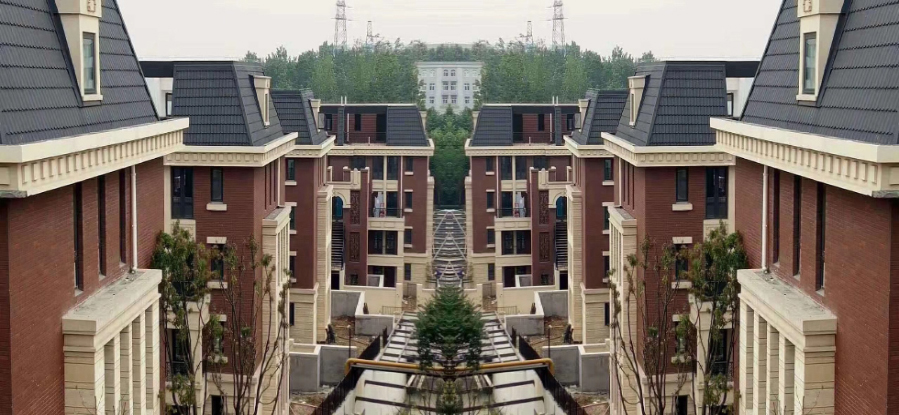

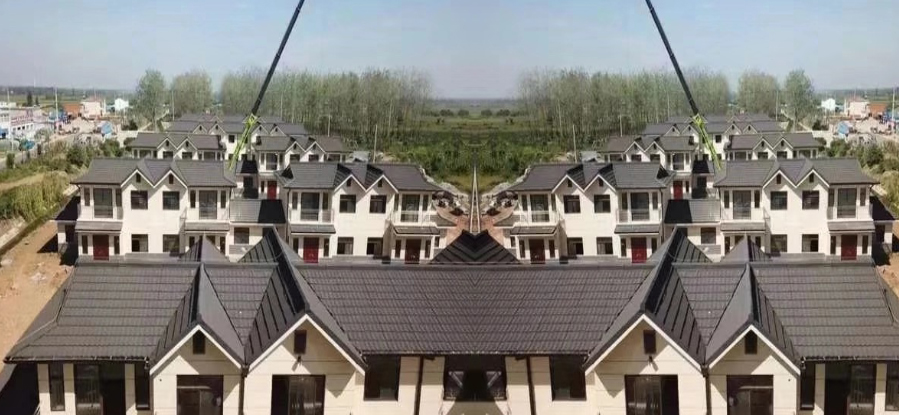

圆弧瓦图片细节展示

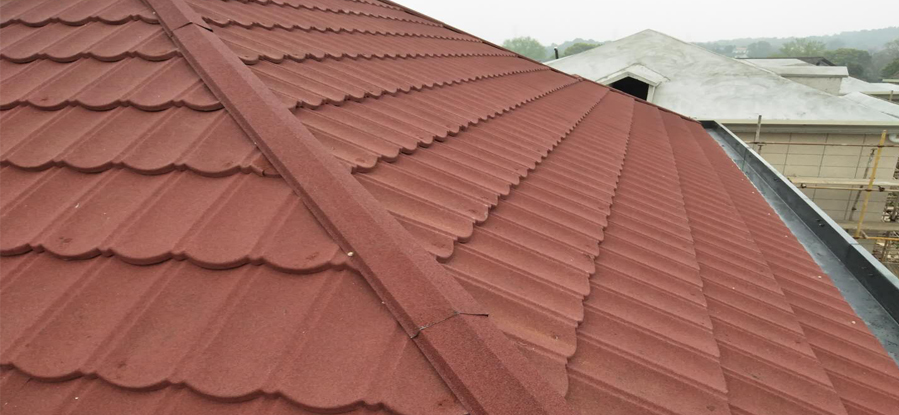

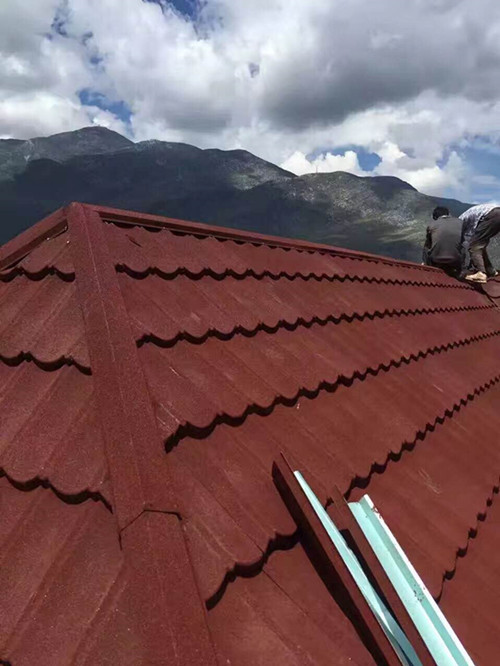

一、陶红色圆弧瓦效果图

二、北极蓝色圆弧瓦效果图


三、墨绿色圆弧瓦效果图


更多圆弧瓦颜色  或者 返回产品列表
